Fuselage, finishing touches

The landing gear and battery hatch are two areas that I modified from the original plans. The wider opening will accommodate a wider 1,500 mAh LiPo for a longer flight duration. The landing gear is made out of 2mm steel wire and is taller than the original aluminium frame. The landing gear is lighter and provides clearance for the 8x6 prop that I intend to use.

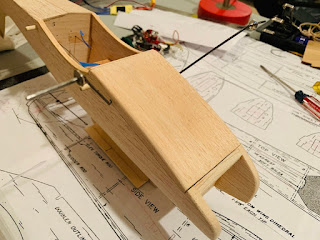

I formed the battery hatch out of 3/8" stock and glued three magnets with matching washers on the fuselage for attachment.


Ornamental pilot head-rest


Skid, 1/16" ply horn, and elevator push rod visible


The complete fuselage (without two servos) weighs 124 grams (about 4.4 oz), which is much below my original goal of 220 grams. Adding the two wings yields about 200 grams total before lacquer and covering. My estimated AUW will be about 395 grams with a 1,500mAh battery and 240 grams with an 800mAh battery.

Comments

Post a Comment

Popular posts from this blog

Covering

Fuselage The fuselage received two coats of Sanding Sealer with light sanding using a 400 grit paper before each coat . After the first two coats I applied the orange Silk Span trim patterns. I wet the orange Silk Span with water from a spray bottle, positioned it carefully, and removed any trapped air bubbles. Once satisfied, I applied Sanding Sealer to the orange Silk Span to fix it in place. When dry, I ran another light sanding of the entire fuselage and applied the final coat of Sealer. Battery compartment cover. I added a "CH"emblem on the right side of the fuselage made out of black iron-on covering. I printed a template with the size and font I wanted and cut the lettering with a sharp hobby knife. Wings I followed the test covering process I did on the balsa frame and covered the wings with clear (white) Silk Span. Once the edges where dry, I followed with light sanding and a coat of Sealer. I added the orange color trim following the 1963 patterns. Just like the fus
Read more

Fuselage, part 1

Before setting out to build the fuselage I decided to do some planning and lots of reading. My Chicken Hawk will be powered by an electric motor so I had to make some changes to the fuselage in order to accommodate a battery, an ESC, and a different motor form factor. The plans also depict a control mechanism that I will replace with two 9 gram servos and a receiver. Because I don't have access to the plans of the modern kit, my only option was to closely examine picture on various build logs and articles, as well as draft some ideas before starting to cut any balsa. My modifications were simple. I replaced the bottom covering between former F1 and F3 with a hatch and an opening for the battery. I also refashioned former F2 with a larger opening. Moving former F1 forward by 3/4" gave me more space for the electronics and eliminated the need for any extension to the motor backing. Heeding the advice of others, I was very careful marking and cutting the fuselage sides. I used tw
Read more

Flight!

  AUW of 416 grams or 14.7 ounces Powered by E-MAX CF2822 1200Kv motor, 30A ESC, 2S 1000mAh LiPo, driving an 8x6 propeller Wing loading 8.95 ounces per square foot, and Cubic Wing Load of 7.0 Outerzone plans: https://outerzone.co.uk/plan_details.asp?ID=2632 Maiden flight video: https://youtu.be/I8XRX7J8edI Webpage: https://sites.google.com/site/eyalabraham/rc-planes
Read more
